Tetrapod

Perfected Form, Excellent Hydraulic Stability, Easy Installation

The Tetrapod, which has become synonymous with wave-dissipating blocks, have a simple shape yielding superior workability, and its high stability against wave action due to strong interlocking between each block makes structures stable.

• Perfected form With a simple form comprised of 4 truncated cone legs, this concrete block is extremely robust because of its high flexing resistance.
• Excellent hydraulic stability With a low center of gravity, individual blocks are extremely stable against currents and other external forces. As for the structure, the blocks interlock naturally and become more stable, and absorb the energy of the flow because of its high roughness and effective voids.
• Easy installation Our Tetrapod steel f Our Tetrapod steel molds are easy to set up and remove because they are composed of 4 simple interchangeable molds (shells). For placement, the Tetrapods are extremely adaptable to site conditions. The Tetrapods are highly workable to construct the sections according to the design.

• Shorelines
• Waterways
• Groundsills (rivers)
• Jetties & Headlands
• Revetments (rivers)
• Spur dikes (rivers)
• Submerged breakwaters & Artificial Reefs
• Breakwaters & Revetments
• Wave-dissipating breakwaters
• Detached breakwaters
• Fish reefs & Seaweed beds
• Solid type

Applications

• 【Marine】 breakwaters, foot protection, detached breakwaters, artificial reefs, jetties
• 【Waterways】foot protection, groundsill work, spur dikes, coffering

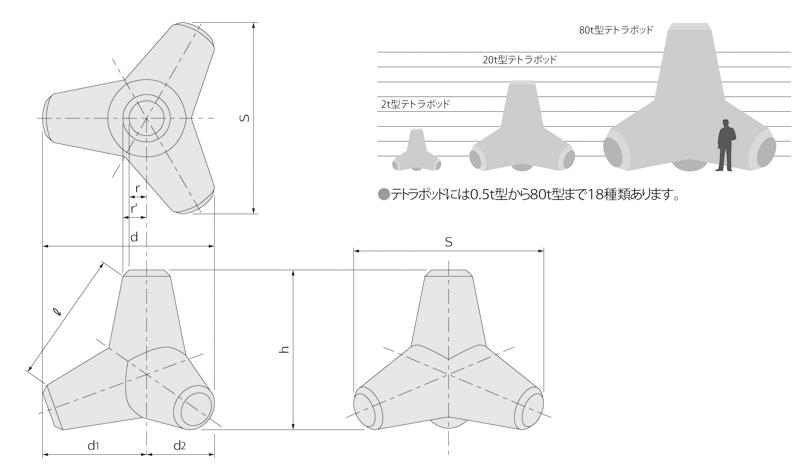

Shape and Dimensions

Shape and Dimensions

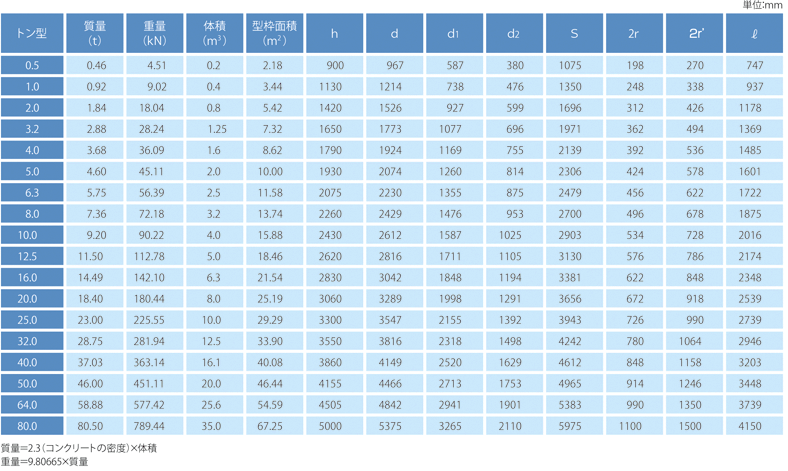

Dimensions
