Tetraneo

Tetraneo has been developed based on “ Tetrapod” which have reliability and many site applications.
Tetraneo has advantages as below.

  • High stability
    Tetraneo has high stability by well-arranged shape of tips of the legs.
  • High structural strength
    Tetraneo has high structural strength because of large cross section of the root of the leg.
  • Eco-friendliness
    Tetraneo has effective eco-friendliness because of large porosity and extremely long ridgelines. It can be seen that Tetraneo has really high affinity to the marine environment.
  • Superior economy
    Tetraneo realizes the high porosity of 60%. Therefore, total amount of concrete can be reduced. In addition, smaller blocks can be used because of high stability. As a result, Tetraneo has superior economy to those of other conventional blocks.
  • Shorelines
  • Waterways
  • Breakwaters & Revetments
  • Wave-dissipating breakwaters
  • Detached breakwaters
  • Fish reefs & Seaweed beds
  • Groundsills (rivers)
  • Jetties & Headlands
  • Revetments (rivers)
  • Spur dikes (rivers)
  • Submerged breakwaters & Artificial Reefs
  • Solid type

Applications

  • 【Marine】breakwater, foot protection, detached breakwaters, artificial reefs, jetties
  • 【Waterways】foot protection, groundsill work, spur dikes, coffering
Location
Embetsu coast (Hokkaido)
Client
Hokkaido
Facility
Detached breakwater
Remarks
12t type
Location
Kita Shitaura port (Kanagawa Prefecture)
Client
Yokosuka City
Facility
Detached breakwater
Remarks
20t type
Location
Usami fishing port (Shizuoka Prefecture)
Client
Ito City
Facility
Breakwater
Remarks
20t type
Location
Gobogadaira highway (Fukui Prefecture)
Client
Fukui Prefecture
Facility
Revetment
Remarks
12t type
Location
Senshu coast (Osaka Prefecture)
Client
Osaka Prefecture
Facility
Seawall
Remarks
4t type
Location
Aioi port (Hyogo Prefecture)
Client
Hyogo Prefecture
Facility
Breakwater
Remarks
4t type
Location
Higashi Fukae port (Oita Prefecture)
Client
Oita Prefecture
Facility
Revetment
Remarks
4t type
Location
Ginama fishing port (Okinawa Prefecture)
Client
Okinawa Prefecture
Facility
Breakwater
Remarks
70t type
Location
Kyan fishing port (Okinawa Prefecture)
Client
Itoman City
Facility
Breakwater
Remarks
2t type
Location
Hirara port (Okinawa Prefecture)
Client
Okinawa General Bureau
Facility
Breakwater
Remarks
4t type

Shape and Dimensions

Shape and Dimensions

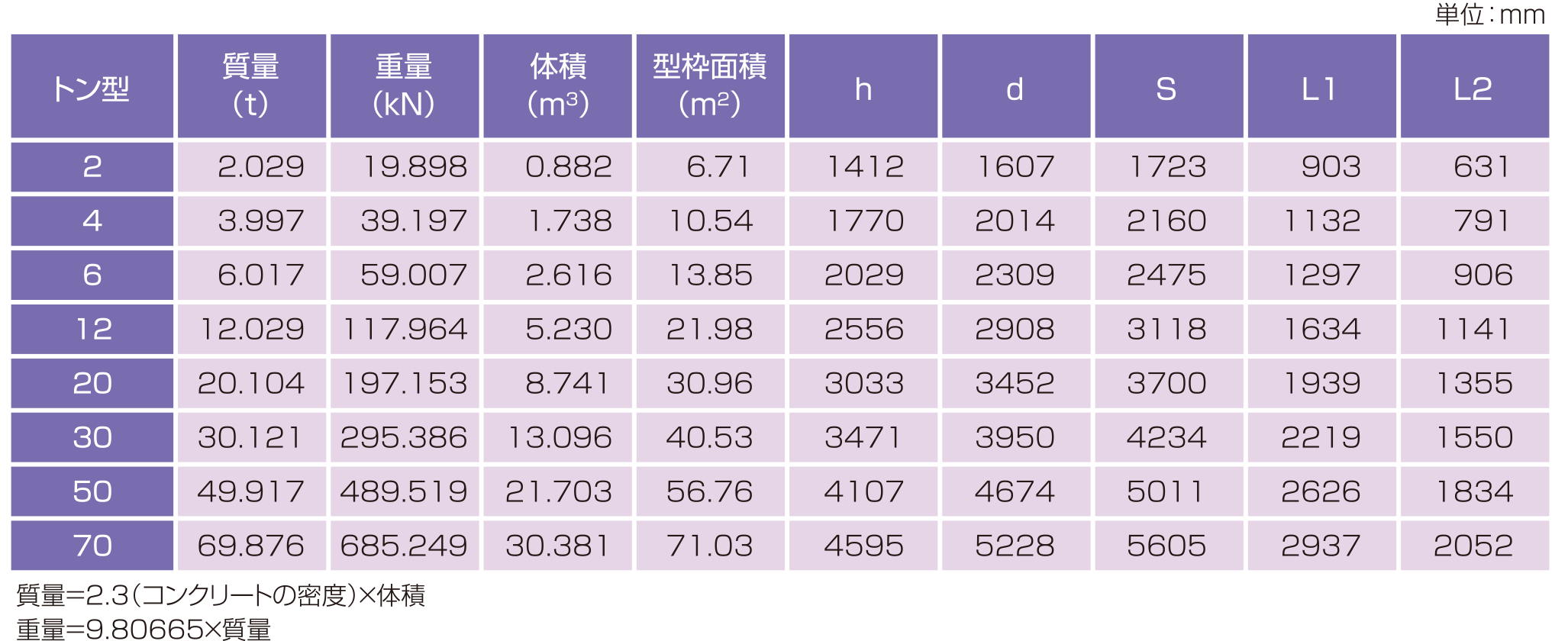

Dimensions
